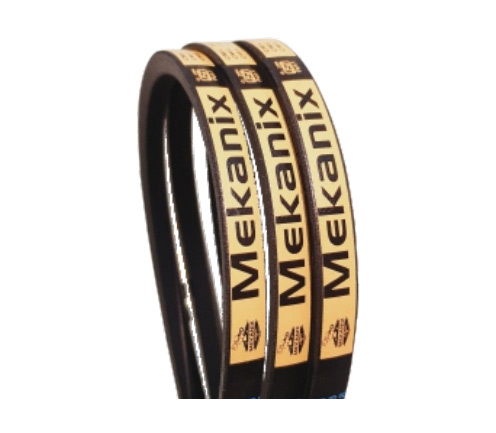

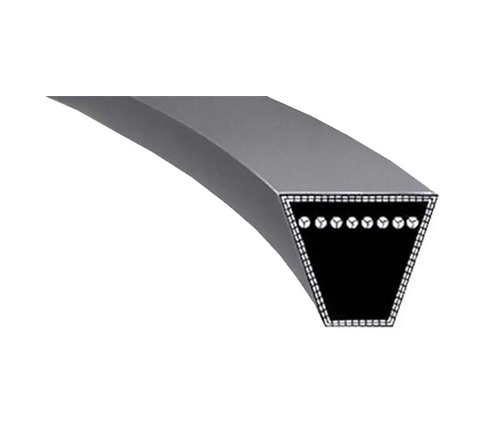

(3V-5V-8V) Recommended for all heavy duty drives requiring high horsepower and a compact design when space and weight are limiting factors. Oil and heat resistant and static dissipating. Narrow Wedge VBelts are measured on the outside diameter. (Example 3V500=50"OD).
| Section | WIDTH (MM) | THICKNESS (MM) | BELT RANGE | BELT LENGTH (MM) |
|---|---|---|---|---|
3V |
9.7 |
8 |
240-1600 |
610-4060 |
5V |
16 |
13 |
950-2500 |
2410-6350 |
8V |
25 |
23 |
1020-7400 |
2590-18800 |
